> 제품 > 저전압 전력 케이블 > 0.6/1kv NYY VV Copper Conductor PVC Insulation Power Cable CU/PVC/PVC 1x185mm2 IEC60502-1

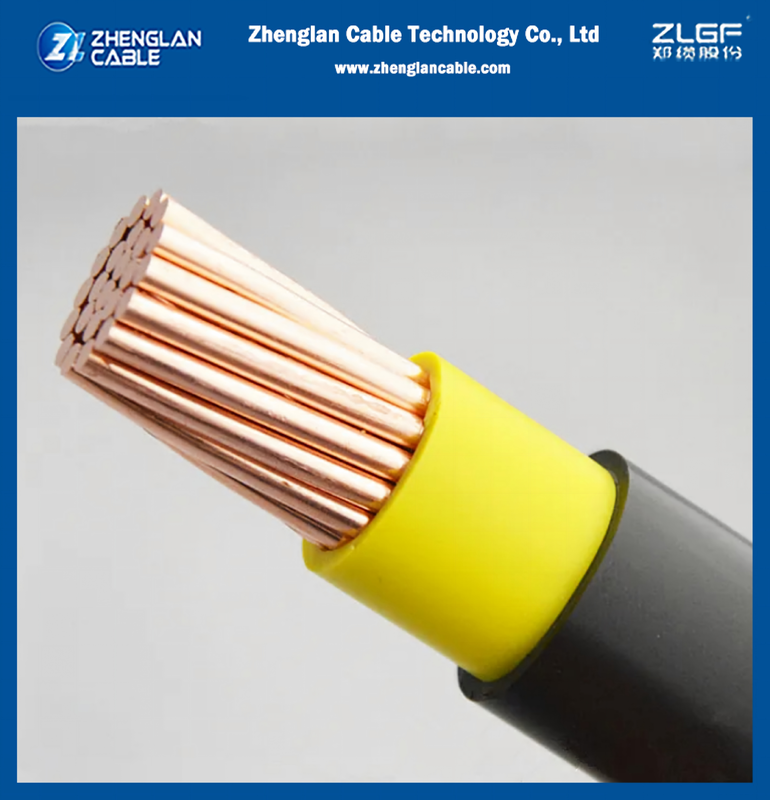

0.6/1kv NYY VV Copper Conductor PVC Insulation Power Cable CU/PVC/PVC 1x185mm2 IEC60502-1

제품 세부정보

원래 장소: 중국 허난성

브랜드 이름: Zhenglan cable

인증: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

모델 번호: 1kv Cu/PVC/PVC NYY 전원 케이블 LV 전원 케이블 1x185mm2 IEC60502-1

결제 및 배송 조건

최소 주문 수량: 1000미터

가격: 협상 가능

포장 세부 사항: 완전히 나무로 되는 드럼, 강철 나무로 되는 드럼, 완전히 강철 드럼 또는 주문을 받아서 만드는

배달 시간: 영업일 기준 15일

지불 조건: L/C, T/T, 웨스턴 유니온

공급 능력: 20000M/DAY

최고 가격 받기
강조하다:

1x185mm2 NYY VV power cable

,

copper conductor PVC insulation cable

,

low voltage power cable with warranty

재료:
CU
격리:
PVC
칼집:
PVC
외피 색상:
검정 또는 맞춤형
케이블 길이:
요구 사항에 따라
전압:
0.6/1kv
기준:
IEC60502-1
포트:
칭다오
재료:
CU
격리:
PVC
칼집:
PVC
외피 색상:
검정 또는 맞춤형
케이블 길이:
요구 사항에 따라
전압:
0.6/1kv
기준:
IEC60502-1
포트:
칭다오
0.6/1kv NYY VV Copper Conductor PVC Insulation Power Cable CU/PVC/PVC 1x185mm2 IEC60502-1

Product Description

They are used as power and control cables in static installations, indoors, in the open air, underground and in water. Direct burial is permitted only under certain conditions.

CABLE MAKE-UP

• Conductors: Solid or stranded (IEC60502 Class 2) bare copper conductors (re=round solid conductor, rm=round stranded conductor, sm=sectorial stranded conductor).

• Insulation: PVC.

• Core Identification: Up to 5 cores color coded according to VDE 0293. 7 cores and above black with white numbering. (-O: a green-yellow earth conductor is not included, -J: a green-yellow earth conductor is included).

• Inner PVC sheath.

 Outer Sheath: PVC standard color black.

• Voltage Rating: 600/1000 V.

• Temperature Range: -20 o C to 70 o C.

• Bending Radius: 15 x cable diameter (solid conductors). 12.5 x cable diameter (stranded conductors).

Single Core
Nominal cross section No. of wire and conductor shape Nominal Thickness Overall Diameter Weight
mm2 pcs - Insulation Outer sheath mm kg/km
185 37 rm 2.0 1.7 25 2009


0.6/1kv NYY VV Copper Conductor PVC Insulation Power Cable CU/PVC/PVC 1x185mm2 IEC60502-1

0.6/1kv NYY VV Copper Conductor PVC Insulation Power Cable CU/PVC/PVC 1x185mm2 IEC60502-1

0.6/1kv NYY VV Copper Conductor PVC Insulation Power Cable CU/PVC/PVC 1x185mm2 IEC60502-1

0.6/1kv NYY VV Copper Conductor PVC Insulation Power Cable CU/PVC/PVC 1x185mm2 IEC60502-1


About zhenglan cable:

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.


Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.


RFQ:

1. Is your company a factory or a trade company?
Factory, more than 20 years in China


2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.


3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.


4. What’s the delivery time?
Sample order needs 3~5 days.

Formal order depends on the quantity, usually it needs 15 working days after get your payment.


5. What is your MOQ?
Generally it is 5000m.
